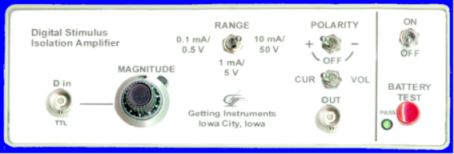

MODEL 4D
Digital Stimulus Isolation Amplifier

Digital Stimulus Isolation Amplifier

Description:
The Model 4D Digital Stimulus Isolation Amplifier (SIU) is a low-noise optical isolation amplifier design to optically isolate electrical stimulating currents.

Highlights:
ZERO leakage current, high compliance (72 VDC), ZERO power on spikes (maintains short circuit across electrode when off), battery load test function, good step response.

Theory of operation:
Inputs: The input mode is digital. TTL or CMOS 0V to 5V. Input connector is isolated BNC.
Output: Output is a current source. Therefore unit operates as a Digitally controlled Current Source. Output connector is also an isolated BNC.
Range: Three output ranges are 0-0.1mA, 0-1mA or 0-10mA. The output is adjust with a 10-turn potentiometer where the value of the pot reflects the value of the output current when a digital pulse is applied. e.g. when the range is 0-1mA and the pot is set at 6 turns the output current will be 0.6mA during the time that the digital input is at a "high" logic level. The range is set from a three position toggle switch.
Power: Powered by 10 9Volt alkaline batteries.


Digital Stimulus Isolation Amplifier Specifications
Input impedance Digital mode => N/A
Input voltage range  Digital mode => TTL/CMOS 0 - 5V
Gain Digital mode => Adjustable in the ranges; 0-0.1mA, 0-1mA, 0-10mA
Output Double-ended, isolated from ground.
Output impedance  Greater than 10^6 ohms.
Output Compliance 72 VDC
Step response <10 microseconds (digital mode, output 5mA, load = 1Kohm). Note; rise time is highly a function of load and output current level.
Leakage current  ZERO
Isolation 2500 Volts
Dimensions 7.25" x 2.5" x 6.25"
Other features Low battery indicator with load test. Rack mount option.
